MACHEREY-NAGEL and Chromatography

We provide optimal and reliable solutions for your laboratory work in sample preparation, method development and routine analysis.

About Us

MACHEREY-NAGEL Chromatography – complete solutions for your analysis

From a pioneer in chromatography to a full-range supplier of laboratory consumables, we supply laboratories around the world with HPLC, GC and SPE columns, TLC/HPTLC plates, autosampler vials, closures and more.

Macherey-Nagel image Macherey-Nagel image

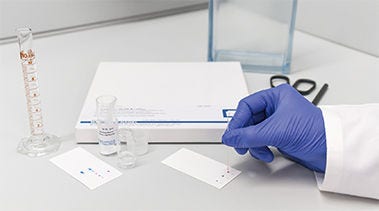

MACHEREY-NAGEL offers a versatile range of ready-to-use TLC and HPTLC layers, which are the result of 50 years of continuous research and development in thin layer chromatography.


The comprehensive range of TLC products from MACHEREY-NAGEL includes:

Macherey-Nagel

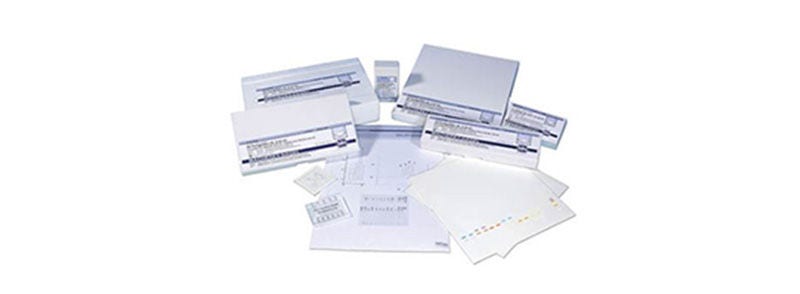

TLC/HPTLC glass plates

ADAMANT, SIL G or SIL HD are silica layers on glass backing. It’s hard to imagine a laboratory without our reliable TLC and HPTLC glass plates.

Macherey-Nagel

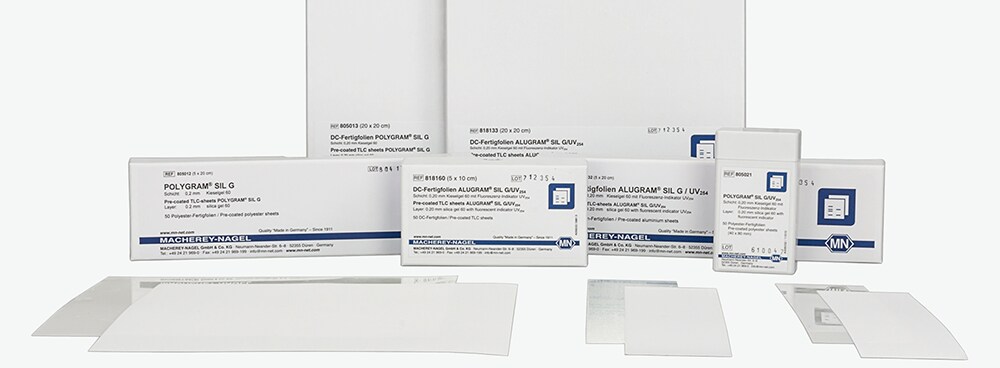

ALUGRAM and POLYGRAM TLC/HPTLC sheets are easy to handle, lightweight and flexible.

High performance silica on ALUGRAM Xtra sheets provides outstanding wettability for precise colourisation results. Moreover these TLC sheets are easy to cut with scissors.

Macherey-Nagel

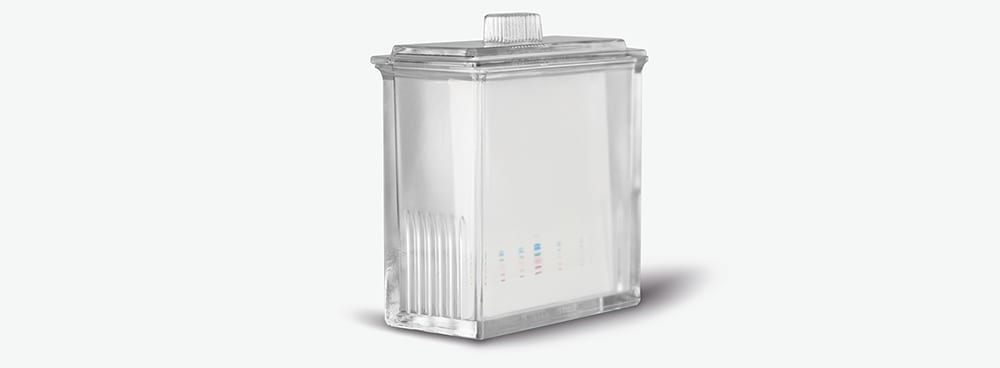

Accessories

In addition to high quality TLC plates and sheets, we offer staining reagents and developing chambers, as well as introductory sets for educational purposes.

TLC Backings & Supports
Macherey-nagel Macherey-nagel

TLC/HPTLC plates and sheets consist of an adsorbent stationary phase on a backing support.

MACHEREY-NAGEL offers three different backings:


  • Glass plates
  • Aluminium sheets
  • Polyester sheets

Properties of TLC backings

Glass Plates

  • Thickness (approx.): 1.3mm
  • Weight and storage requirements: high
  • Torsional strength: ideal
  • Temperature stability: high
  • Susceptible to breakage: yes
  • Can be cut with scissors: no
  • Chemical resistance against solvents: high
  • Chemical resistance against mineral acids and concentrated ammonia: high
  • Suitability for aqueous detection reagents: depends on phases (layer)

Glass plates are robust, heat proof and chemically resistant to all common mobile phases and visualisation reagents. They are the traditional option in TLC/HPTLC and are widely used in the pharmaceutical sector and other laboratory environments.

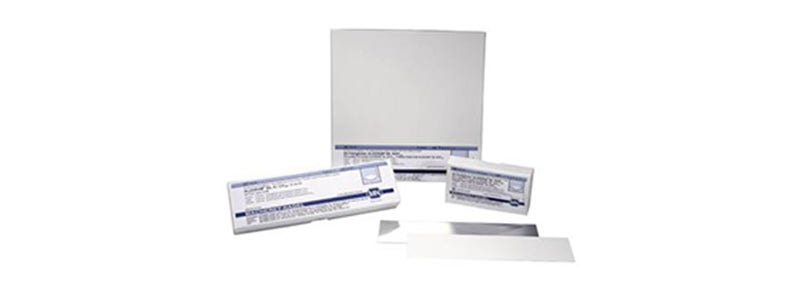

Aluminium Sheets - ALUGRAM Xtra

  • Thickness (approx.): 0.15mm
  • Weight and storage requirements: low
  • Torsional strength: relatively high
  • Temperature stability: high
  • Susceptible to breakage: no
  • Can be cut with scissors: yes
  • Chemical resistance against solvents: high
  • Chemical resistance against mineral acids and concentrated ammonia: low
  • Suitability for aqueous detection reagents: ALUGRAM: low to moderate, ALUGRAM Xtra: moderate to high

Aluminium sheets are easy to handle, lightweight and flexible. High performance silica on ALUGRAM Xtra sheets provides outstanding wettability for precise colourisation results, even with 100% aqueous detection reagents. Moreover, ALUGRAM Xtra sheets are easy to cut with scissors. No flaking of silica occurs!


Polyester Sheets – POLYGRAM

  • Thickness (approx.): 0.2mm
  • Weight and storage requirements: low
  • Torsional strength: low
  • Temperature stability: maximum 185°C
  • Susceptible to breakage: no
  • Can be cut with scissors: yes
  • Chemical resistance against solvents: high
  • Chemical resistance against mineral acids and concentrated ammonia: high
  • Suitability for aqueous detection reagents: good

Polyester sheets are easy to handle, lightweight and flexible, and can also be cut with scissors. Developed POLYGRAM sheets can also be stored for documentation in laboratory notebooks.

TLC and HPTLC
Macherey_Nagel

Features of modern TLC/HPTLC

The success of thin layer chromatography as a highly efficient microanalytical separation method is based on a large number of advantageous properties:

  • High sample throughput in a short time
  • Suitable for screening tests
  • Pilot procedure for HPLC and Flash chromatography
  • After separation the analytical information can be stored for a longer period of time (the TLC ready-to-use layer acts as storage medium for data)
  • Separated substances can be subjected to subsequent analytical procedures (e.g., IR, MS) at a later date
  • Rapid and cost-efficient optimisation of the separation due to easy change of mobile and stationary phase
Macherey-nagel Macherey-nagel

'TLC' and 'HPTLC' are both widely used terms in laboratory environments, but what is the difference? At MACHEREY-NAGEL, we define 'HPTLC' where at least one of the following criteria is being fulfilled:

  • Layers with particle size 2–10 μm
  • Layers prefixed with 'Nano'
  • Modified layers

Narrow fractionation of HPTLC silica particles allows:

  • Sharper separations
  • Shorter developing times
  • Shorter migration distances
  • Smaller samples needed
  • Increased detection sensitivity (compared to TLC)
Products

Macherey-Nagel™ Glass Laboratory Sprayer

Used as an accessory in thin layer chromatography applications. Macherey-Nagel™ Glass Laboratory Sprayer includes a 100mL, clear glass conical flask with a sprayer-stopper assembly and rubber bulb/tubing. Glass from laboratory sprayer with rubber bulb

Macherey-Nagel™ Quantofix™ Peroxide 100 Test Strip Kits

Allows for the quick and easy determination of peroxide levels in solutions. Macherey Nagel™ Quantofix™ Peroxide 100 Test Strip Kits are semi-quantitative, come pre-calibrated and contain all necessary equipment and reagents.
X100 Test sticks QUANTOFIX Peroxide 100 semi,

Macherey-Nagel™ Oil Test Paper

Allows the rapid, reliable and qualitative detection of oil contaminations of water and soil. Macherey Nagel™ Oil Test Papers' sensitivity largely depends on the nature of the respective hydrocarbon. X100 OIL STRIPS

Macherey-Nagel™ Lead Acetate Test Paper

Provides for the quick and easy determination of lead hydrogen sulphide in samples. Macherey Nagel™ Lead Acetate Test Paper is toxic and needs to be declared as hazardous. 5M LEAD ACETATE PAPER

Macherey-Nagel™ MN 85/90 Glass Fiber Filters

Filter organic or inorganic solvents quickly with high particle retention. Macherey Nagel™ MN 85/90 Glass Fiber Filters provide safe filtration of aggressive liquids X100 GLAS FILTER MN 85/90 90

Macherey-Nagel™ Quantofix™ Nitrate and Nitrite Test Strip Kits

Allows for the quick and easy determination of nitrate and nitrite in solutions. Macherey Nagel™ Quantofix™ Nitrate and Nitrite Test Strip Kits are semi-quantitative, come pre-calibrated and contain all necessary equipment and reagents.
X100 100 QUANTOFIX TEST STRIPS,FOR THE SEMI QUANTI

Macherey-Nagel™ Standard SIL G Silica Layers on Polygram™ polyester sheets

Separate non-volatile mixtures with unmodified standard silica layers for TLC (Thin-Layer Chromatography). Standard SIL G silica layers on Polygram™ polyester sheets come in a variety of sizes. Select fluorescent indicator and choose from a variety of pack sizes. X25 POLYGRAM sheets SIL G/UV254 size: 20 x 20 cm

Macherey-Nagel™ Ozone Test Strips

X12 OZONE TEST STICKS

Macherey-Nagel™ Blue Litmus Paper

Provides a general test for acidic or alkaline reactions. Macherey Nagel™ Blue Litmus Paper is comprised of completely impregnated indicator paper.
Lackmuspapier blau, 10 x 75mm,(VE=100Stck)

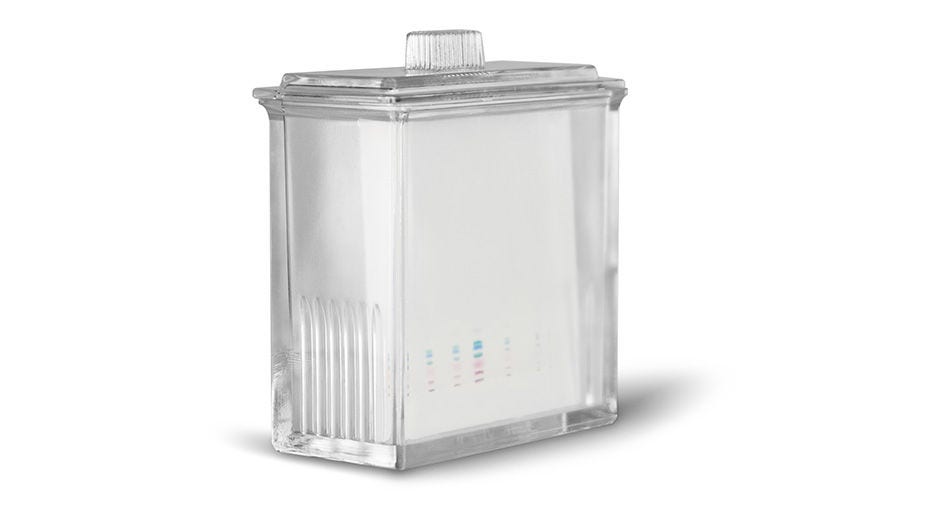

Macherey-Nagel™ TLC Simultaneous Developing Chamber

Develop multiple TLC plates simultaneously. TLC Simultaneous Developing Chambers  come with a choice of room for either 2 or 5 plates. TLC-Separation-Chamber for 2 simultaneous separations, 10 x 10 cm plates

Macherey-Nagel™ Tritest™ pH Paper Roll

Featuring three indicator zones for the highest accuracy readings. Macherey Nagel™ Tritest™ pH Paper Rolls give the user the most precise readings possible in pH measurement. TRITEST-UNIVERSAL- INDIKATORPAPIER PH 1 - 11 (1ROLLE),90510

Macherey-Nagel™ MN 615 Grade Round Format Cellulose Qualitative Filter Paper

Use for a wide range of general laboratory filtrations. MN 615 Grade Round Format Cellulose Qualitative Filter Paper provides medium fast filtration. Rundfilter MN 615, D=5,5 cm (VE=100Stck.)

Macherey-Nagel™ MN 617 Grade Filter Papers, Round

Suited for general filtration applications, including coarse-crystalline qualitative analysis. Macherey-Nagel™ MN 617 Grade Filter Papers, Round are smooth, soft filter papers with fast filtration speed. The average ash content is about 0.1%, the amount of α-cellulose is about 95%. X100 FILTER MN617 110MM

Macherey-Nagel™ pH-Fix™ pH 3.6–6.1 Test Sticks

Quickly and easily test pH value directly at the point of interest, regardless of experience or chemical background. Macherey-Nagel™ pH-Fix™ pH Test Strips are long handled, no-bleed dip sticks that are ready to use without the need for calibration, set-up or maintenance. X100 pH-Fix strips pH 3,6-6,1

Macherey-Nagel™ Quantofix™ Ammonium Test Strip Kits

Allows for the quick and easy determination of ammonium in solutions. Macherey Nagel™ Quantofix™ Ammonium Test Strip Kits are semi-quantitative, come pre-calibrated and contain all necessary equipment and reagents. QUANTOFIX Ammonium box of 100test sticks 6 x 95 mm incl. reagents __UN 3316

Macherey-Nagel™ pH Paper

Measure pH simply and easily. Macherey-Nagel™ pH paper comes in a circular format with a wide variety of pH ranges. 5M PH PAPER 1-11(VE=1Rolle a 5 m)

Macherey-Nagel™ NANOCOLOR™ COD Tube Tests

Easy, fast COD measurements that conform to ISO 15705 standards. Macherey-Nagel™ Nanocolor™ COD Tube Tests include exactly pre-dosed reagents in 16mm cuvettes and additional reagents for easy handling, high safety and maximum precision. Available in a range of measurement ranges. NANOCOLOR Rundküvettentest CSB 10000, mit Barcode, (ca. 20 Bestimmungen)

Macherey-Nagel™ NucleoSpin™ Gel and PCR Clean-up Kit

Clean up PCR reactions and gel extractions with a two-in-one approach. Macherey-Nagel™ NucleoSpin™ Gel and PCR Clean-up Kit is optimized for recovery and elution volume when purifying DNA fragments via both applications. NucleoSpin Gel and PCR Clean-up (250)

Macherey-Nagel™ Brilliant Yellow pH Paper

BRILLANT YELLOW PAPER (200 STRIPS)

Macherey-Nagel™ Quantofix™ Peroxide 1000 Test Strip Kits

Allows for the quick and easy determination of peroxide levels in solutions. Macherey Nagel™ Quantofix™ Peroxide 1000 Test Strip Kits are semi-quantitative, come pre-calibrated and contain all necessary equipment and reagents.
X100 Test sticks QUANTOFIX Peroxide 1000 semi,

Macherey-Nagel™ Potassium Iodide Starch Paper

Impregnated with potassium iodide and starch for the detection of nitrite and free chlorine. Macherey Nagel™ Potassium Iodide Starch Paper may be used by dipping it into the solution to be tested.
Kaliumjodatstärkepapier 816N, 10x75mm (VE=100Stck.)

Macherey-Nagel™ Visocolor™ ECO Ammonium 3 Colorimetric Test Kit

Perform colorimetric determinations of ammonium in surface water and sewage. Macherey-Nagel™ Visocolor™ ECO Ammonium 3 Colorimetric Test Kit enables accurate determination of ammonium with limiting values as low as 0.2mg/L using a color comparison chart. KIT VISOCOLOR AMMONIA ECOBestimmungen)

Macherey-Nagel™ Polygram CEL 300-10 Glass Plates

X25 TLC precoated plates CEL 300-10 size: 20x20 cm

Macherey-Nagel™ Aquadur™ Test Strips

Determine water hardness quickly, easily and reliably. The Aquadur™ test strips provide a convenient dip and read procedure and a clear colour changes from green to red ensures reliable results within seconds. X100 100 AQUADUR TEST STRIPS,FOR THE SEMI QUANTITATIVE DETERMINATION OF WATER HARDNESS 0-21 D

Macherey-Nagel™ Polygram CEL 300 Polyester Sheets

X25 POLYGRAM sheets CEL 300 size: 20 x 20 cm

Macherey-Nagel™ Potassium Iodide Starch Qualitative Test Paper

Allows the quick and easy detection of strong oxidizers such as nitrite and free chlorine. Macherey-Nagel™ Potassium Iodide Starch Qualitative Test Paper is also used to control diazotization reactions. Potassium iodide starch paper is available in two formats: 5m reel or 70 x 20mm test strips. X200 KALIUM PAPER(VE=200 Stck.)

Macherey-Nagel™ Tritest™ pH Paper Roll

Featuring three indicator zones for the highest accuracy reading. Macherey Nagel™ Tritest™ pH Paper Rolls give the user the most precise readings possible in pH measurement.
5M PH PAPER 1-11 TRITEST
